Printer configurations
Learn about the parts of the printer.

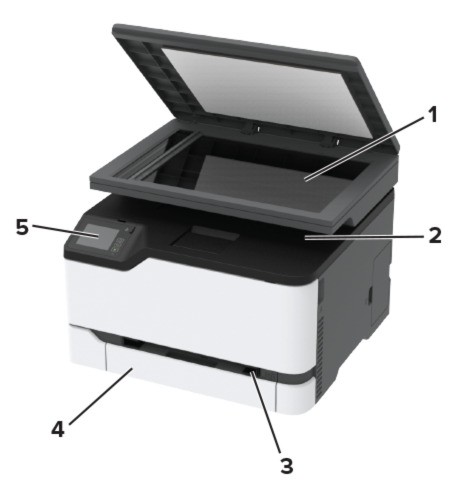

Lexmark MC3224dwe MFP
1 | Scanner |
2 | Standard bin |
3 | Manual feeder |
4 | 250‑sheet tray |
5 | Control panel |

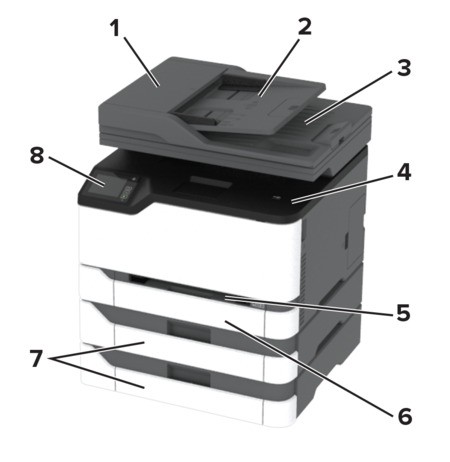

Lexmark CX331, Lexmark CX431, Lexmark MC3224adwe, Lexmark MC3326, Lexmark MC3426, Lexmark XC2326 MFPs
1 | Automatic document feeder (ADF) |
2 | ADF tray |
3 | ADF bin |
4 | Standard bin |
5 | Manual feeder |
6 | Standard 250‑sheet tray |
7 | Optional 250‑sheet trays Supported only in some printer models. |
8 | Control panel |
